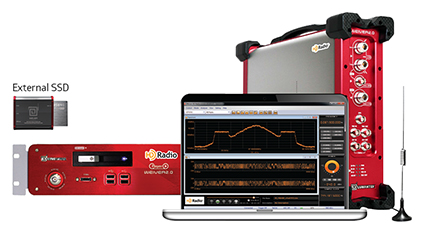

加載Weiver Player 2.0硬件，HD Radio矢量信號發生器復制了各種HD Radio服務模式和配置。
它配備了一個用于測試存儲的超快SSD
HD Radio矢量信號發生器獲得HD Radio Technology許可方iBiquity Digital認證的儀器。
您若對該產品感興趣，歡迎通過電話或微信公眾號進行進一步溝通、查詢！

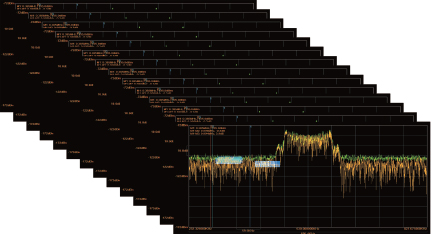

334 HD Radio Vector Files
Expression of 334 Vector files in Spectrum Masks. (AM 91 files / FM 243 files)
API & Command
HD Radio Signal Generator comes with
hundreds of data packets and commands.
Certified by HD Radio
300 Vector Libraries certified by iBiquity
Digital Corporation.
Tech Specs
| Frequency |
|
| Frequency band | 0.1 to 1 GHz |
| Frequency resolution | 1Hz step |
| Freq. Stability vs. Temp. | ±20 ppb max. |
| Daily Aging | ±1 ppb max. |
| Aging (PER year) | ±50 ppb max. |
| Spectral Purity | |
| Phase Noise @ 1 KHz offset | ≤ -100 dBc/ Hz (30 MHz) |
| ≤ -95 dBc/ Hz (1 GHz) | |
| ≤ -90 dBc/ Hz (2.7GHz) | |
| Phase Noise @ 10 KHz offset | ≤ -105 dBc/ Hz (30 MHz) |
| ≤ -100 dBc/ Hz (1 GHz) | |
| ≤ -95 dBc/ Hz (2.7GHz) | |
| Spurious Responses | |
| 2nd Harmonic | ≤ -50 dBc |
| 3rd Harmonic | ≤ -60 dBc |
| Other | ≤ -60 dBc |
| RF Output characteristics | |
| Gain Range | -30~+30dB (Input Level Basis) |
| Amplitude Resolution | 0.1dB step (Min.) |
| Amplitude Accuracy | ±1dB |
| power |
0dBm max. (48 to 2700 MHz) / + 10dBm max. (0.1 to 48MHz) |
| RF Output | |
| RF Output Port | 50ohm, N type female, DC-coupled |
| Max. DC input | ±25 VDC max. |
| Max. Reverse RF Power | 1W (Max.) |
| Environment | |
| Operating Temperature | 0 to +50°C |
| Relative Humidity | 90% |
| Storage temperature | -20 to +70 °C |
| Physical Features | |
| Dimensions | 478mm(W) x 88mm(H) x 462mm(D) |
| Weight | 7.5 kg |
| Power Consumption | 70W |
