可以對2K、4K、8K信號進行實時轉換。
您若對該產品感興趣，歡迎通過電話或微信公眾號進行進一步溝通、查詢！
可以使用24個BNC輸入/輸出端口進行8K Dual Green (7680 x 4320/59.94p), 4K (3840 x 2160/59.94p) and HD (1920 x 1080/59.94p and 59.94i) 的實時轉換。
?向上轉換HD圖像到4K或8K, 4K圖像到8K
?向下轉換8K圖像到4K或HD, 4K圖像到HD
?8K DG HD-SDI 16ch3G-SDI 8ch
?選擇區域將8K圖像轉為Extract 4K
?支持22.2ch, 5.1ch音頻
?音頻通道指派功能
?22.2ch -> 5.1ch down mix, 5.1ch -> Stereo down mix available
?當前功能設置保存
?測試功能生成
?相位調整功能
?通過 "Video Setting", "Signal Status" ， "System Status" 顯示進行狀態監控
?支持冗余電源
?通過遙控器RB-8209-A進行遠端控制
?RB-8209-A 最多可控制16個單元SC-8209-A
|

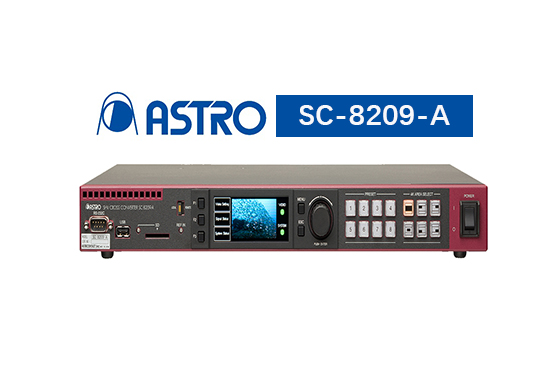

前面板 |
|
|

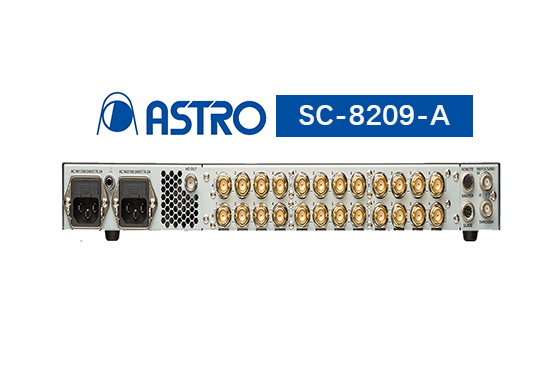

| 背板 |
|
|
Up convert 4K -> two 8K-DG output |
Up convert 4K -> 8K-DG + Down convert 4K -> HD | |
|
|
|
|
| Down convert 8K-DG -> 4K and HD | Down convert 8K-DG + 4K input -> 4K output by switching both Source | |
|
|
產品性能：
|
SDI Input
|
||||||
|
Items
|
Specification
|
|||||
| In and Out port | PORT. A/B (8PORT) : Input only PORT. C/D/E/F : In and Output Port | |||||
| Supporting format | Required BNC | Resolution | Frame Rate | Color depth | Format | |
| Dua Green SHV | BNC x 16 | 7680 x 4320 | 59.94p | G1/G2/B/R | HD-SDI (1.485Gbps) | |
| 10-bit | Square Division | |||||
| BNC x 8 | 7680 x 4320 | 59.94p | G1/G2/B/R | 3G-LEVEL-B (2.97Gbps) | ||
| 10-bit | Square Division | |||||
| 4K (1.5G) | BNC x 8 | 3840 x 2160 | 59.94p | YCBCR 4:2:2 | HD-SDI (1.485Gbps) | |
| 10-bit | Square Division | |||||
| 4K (3G) | BNC x 4 | 3840 x 2160 | 59.94p | YCBCR 4:2:2 | 3G-LEVEL-A (2.97Gbps) | |
| 10-bit | Square Division | |||||
| 3G-SDI | BNC x 1 | 1920 x 1080 | 59.94p | YCBCR 4:2:2 | 3G-LEVEL-A (2.97Gbps) | |
| 10-bit | ||||||
| HD-SDI | BNC x 1 | 1920 x 1080 | 59.94i | YCBCR 4:2:2 | HD-SDI (1.485Gbps) | |
| 10-bit | ||||||
| Connector | 1.485/2.97Gbps 75Ω BNC | |||||
|
SDI Output
|
||||||
|
Items
|
Specification
|
|||||
| In and Out port | PORT. C/D/E/F (16PORT) : In and Output Port | |||||
| Supporting format | Required BNC | Resolution | Frame Rate | Color depth | Format | |
| Dua Green SHV | BNC x 16 | 7680 x 4320 | 59.94p | G1/G2/B/R | HD-SDI (1.485Gbps) | |
| 10-bit | Square Division | |||||
| BNC x 8 | 7680 x 4320 | 59.94p | G1/G2/B/R | 3G-LEVEL-B (2.97Gbps) | ||
| 10-bit | Square Division | |||||
| 4K (1.5G) | BNC x 8 | 3840 x 2160 | 59.94p | YCBCR 4:2:2 | HD-SDI (1.485Gbps) | |
| 10-bit | Square Division | |||||
| 4K (3G) | BNC x 4 | 3840 x 2160 | 59.94p | YCBCR 4:2:2 | 3G-LEVEL-A (2.97Gbps) | |
| 10-bit | Square Division | |||||
| 3G-SDI | BNC x 1 | 1920 x 1080 | 59.94p | YCBCR 4:2:2 | 3G-LEVEL-A (2.97Gbps) | |
| 10-bit | ||||||
| HD-SDI | BNC x 1 | 1920 x 1080 | 59.94i | YCBCR 4:2:2 | HD-SDI (1.485Gbps) | |
| 10-bit | ||||||
| Connector | 1.485/2.97Gbps 75Ω BNC | |||||
|
HD Output
|
|
|
Items
|
Specification
|
| Output signal | HD-SDI supported resolution |
| Format | HD-SDI 1920 x 1080/59.94i YCBCR 4:2:2 10-bit |
| Connector | 1.485 75Ω BNC |
